60w led high bay light from China manufacturer - Shenzhen FYN Technology Co.,Ltd

Payment Terms:	T/T,L/C,WU;Paypal
Place of Origin:	Guangdong, China (Mainland)


Add to Basket	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: FYN-IS500-W60-A

Production Capacity: 2000

Delivery Date: 5-15 working days after pay...

Power: 60w

Led efficiency: 80-90lm/w

Color temperature: 2700-7000k

Lifespan: 50000hrs

IP grade: IP65 or IP54

Means of Transport: Ocean,Land,Air

Packing: Standard carton packing or ...

Input voltage: AC85-265V

Luminous: 5100lm

Ra: >75

Working temperature: -40°C~+45°C

Material: Aluminum

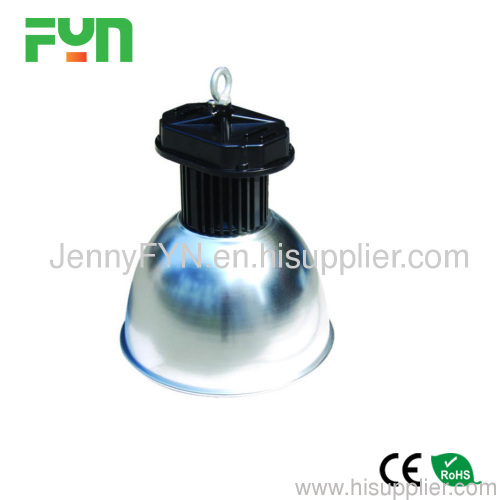

60w led high bay light
1.high luminous:5100lm
2.45 90 120 degree option
3.circular extrusion heatsink
4.CE,ROHS,50000h life
5.3yrs warranty

Led high bay light,60w led high bay light with good housing

About led high bay light

as for led chips ,we have bridgelux,cree and philips
as for driver,we have meanwell and our own produce driver
as for heatsink,we have circular extrusion ,sunflower extrusion and copper pipe,copper cylinder
3yrs warranty led high bay light
CE ROHS approval led high bay light

Main Technical Parameters(60w led high bay light )

Model:FYN-IS500-W60-A
Optical Parameters		Electrical Parameters
LED Chip Brand	Brigelux Chip	Input Voltage	AC85-265V
LED Chip Type	Multi leds module	Frequency Range	50Hz -60Hz
LED Chip Quantity	1pcs	Working Voltage	DC30-36V
Heat sink	Circular extrusion heat sink	Lamp's Efficiency	>80%
Workshop	Model and die-casting workshop	Total Harmonic Distortion	≤20%
Color Temperature	2700K-7000k option	Power Factor	≥0.9
LED Luminous Efficiency	80-90m\w	Power Efficiency	>85%
Initial Luminous	4800-5400lm	LED Consumption	60W
Color Rendering Index	WW: Ra>68 PW\CW:Ra>75	System Consumption	66W
Bean Angle	45	Illuminance Uniformity	>0.4
Others
Light Distribution	Symmetry or Circular flare	Color of Lamp Shell	Black or Silver
Light Design	LED+Reflectors Secondary light distribution	Power Line	0.75mm² double core line
Junction Temperature	≤80°C	Certificate	CE,ROHS,LVD,EMC
Working Temperature	-40°C~+45°C	Lamp Packing Dimension	270270300mm
Storage Temperature	-40°C~+65°C	Lamp Weight: G.W \ N.W	5.4kg/4.32kg
IP Grade	54 or 65	Working Life-span	50000hrs

Led high bay light,60w led high bay light with good housing

Features

1.Led high bay light is uesed single powerful LED(30W–100W) as the led light source , using our proprietary LED encapsulation. Utilizes the special design of multichip single module. Imported high brightness semiconductor chips. High heat conductivity, low luminous decay, pure light color and no ghosting.

2.Integrative design for heat sink and housing; the LED is closely connected to the surface;the heat from the LED is removed through the heat dissipation wing and also by air ventilation. This ensures 50,000 hours life-span for the LED.

3.The surface of led high bay light is passed through anodic oxidation treatment. Its structure is compact and beautiful. It can meet the requirement of IP65,and it has good capacity like antisepticising,
waterproofing, and dust prevention.

4.Obvious power-saving efficiency,use powerful LED light source and high efficiency imported LED driver. And compare with sodium lights, led high bay light can save electricity around 60%.

5.Environment friendly,no pollution to the air ,and do not have lead, hydrargyrum and any other contamination of the led high bay light.

6.The led high bay light can present the original color of the objects and has varieties of colors to choose which can meet the requirements in different environments. It eliminates the dullness of environments caused by the lower color temperature, like sodium lamp, or higher color temperature, like mercury lamp. Also this could satisfy the feeling of those who appreciate the lighting,thus improving the working efficiency.

7.The led high bay light is controlled by constant current and constant voltage. Its working voltage (AC85V-265V) can overcome the electrical grid, noise pollution and unstable light caused by ballast, eliminating the glare and fatigue.

8.Good decorative led high bay light and its surface is specially treated. The housing can be with different kinds of colors. Easier to be installed and to be unloaded; can be used in different places.

Applications

Workshops, factories, storehouses, toll stations,industrial

gas stations, supermarkets, exhibition halls, gymnasiums

some other places where need led high bay light,60w led high bay light
